Bosch MEDC17 Bootloader pinout

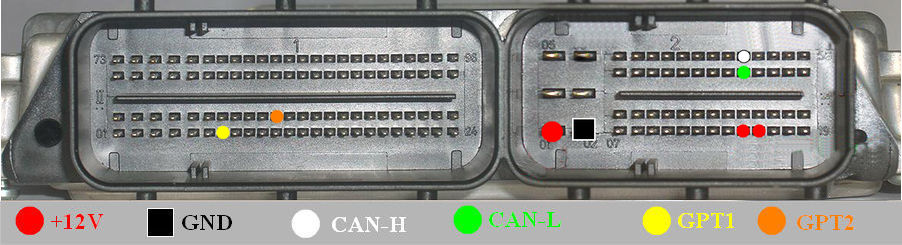

BMW ME17.2.4 BMSMP TC1793

T58 6, 52 – +12V

T58 2 – GND

T58 42 – CAN High

T58 55 – CAN Low

T96 34 – GPT1

T96 39 – GPT2

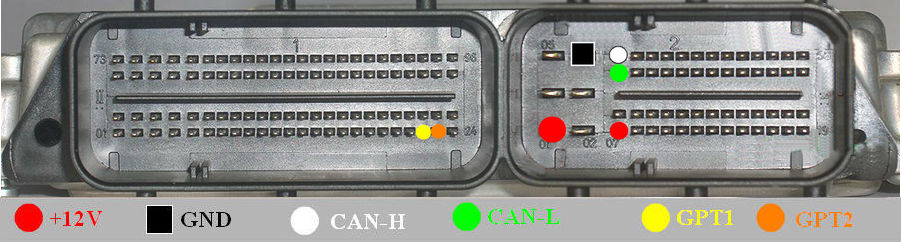

BMW MEV17.2 TC1796, BMW MEV17.2.1 TC1796

T58 1, 7 – +12V

T58 6 – GND

T58 46 – CAN High

T58 33 – CAN Low

T96 22 – GPT1

T96 23 – GPT2

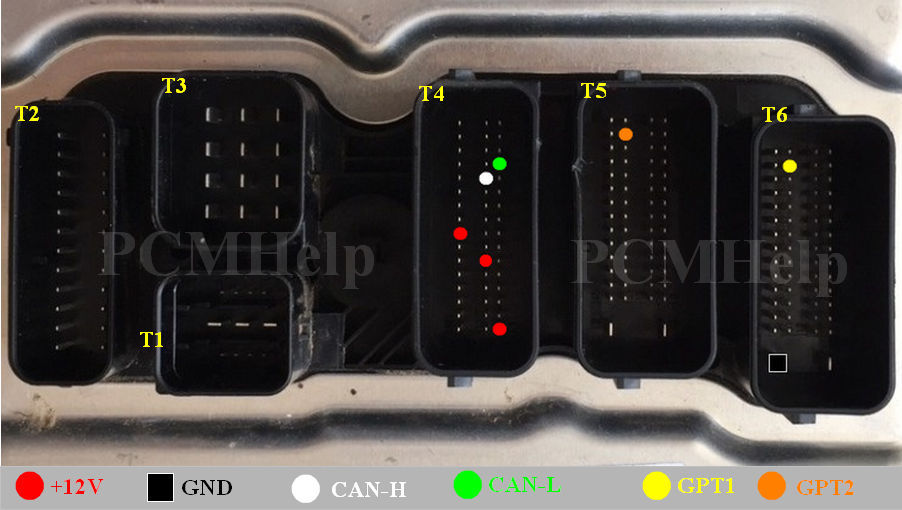

BMW MEVD17.2.9 TC1797

T4 1, 22, 40 – +12V

T6 2 – GND

T4 28 – CAN High

T4 13 – CAN Low

T6 43 – GPT1

T5 43 – GPT2

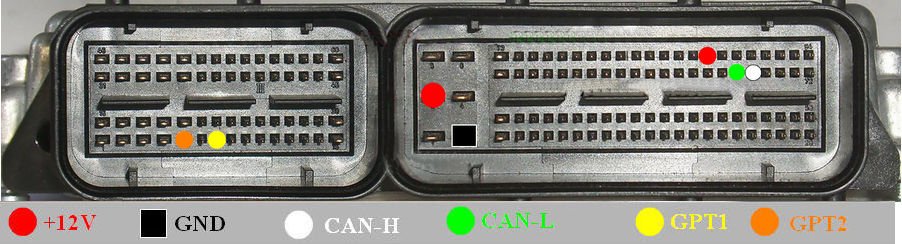

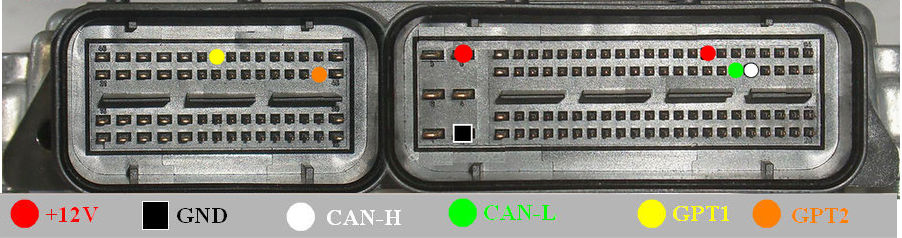

BMW EDC17C56 TC1797

T58 1, 18 – +12V

T58 2 – GND

T58 56 – CAN High

T58 55 – CAN Low

T96 92 – GPT1

T96 89 – GPT2

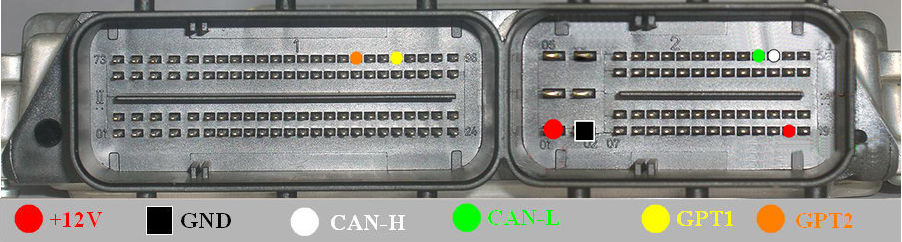

GM EDC17C49

T94 3, 64 – +12V

T94 2 – GND

T94 46 – CAN High

T94 47 – CAN Low

T60 14 – GPT1

T60 59 – GPT2

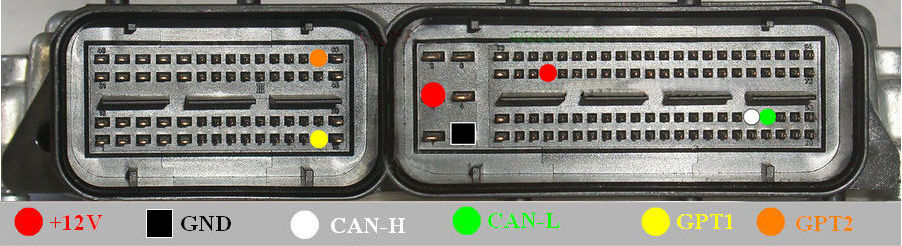

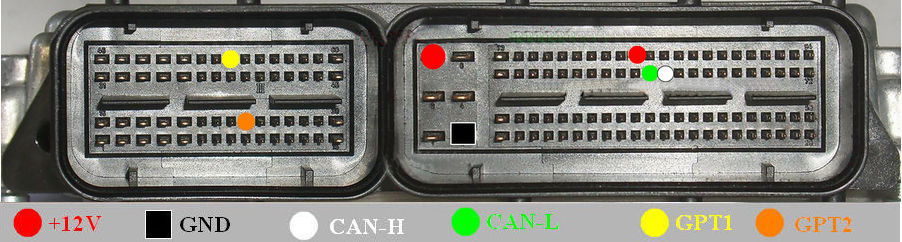

INFINITI MED17.7.2

T58 5, 15 – +12V

T58 2 – GND

T58 41 – CAN High

T58 54 – CAN Low

T96 81 – GPT1

T96 58 – GPT2

Iveco EDC17CP52 TC1797

T94 5, 82 – +12V

T94 2 – GND

T94 62 – CAN High

T94 61 – CAN Low

T60 53 – GPT1

T60 24 – GPT2

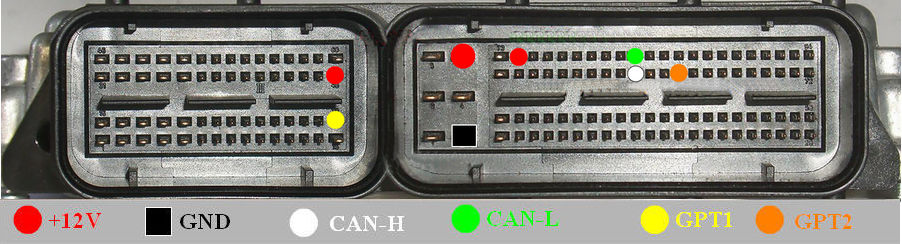

JLR EDC17CP11 TC1796+EXT

T58 3, 15 – +12V

T58 2 – GND

T58 40 – CAN High

T58 53 – CAN Low

T96 41 – GPT1

T96 44 – GPT2

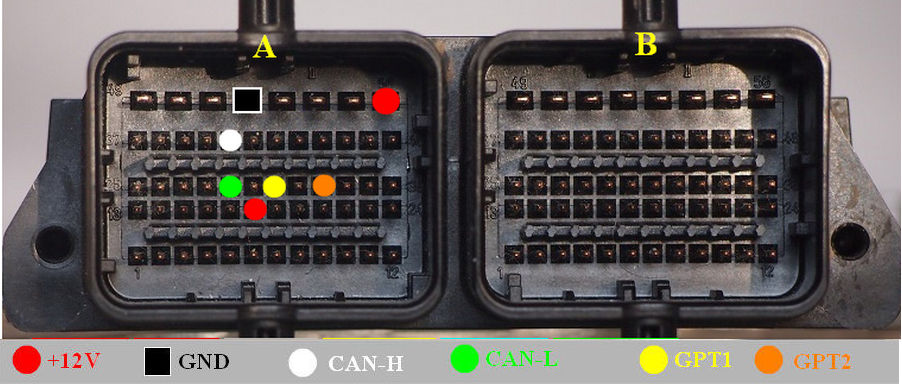

K/H ME17.9.21 TC1724

A 18, 56 – +12V

A 52 – GND

A 41 – CAN High

A 29 – CAN Low

A 31 – GPT1

A 33 – GPT2

K/H MEG17.9.21 TC1724

T94 6, 74 – +12V

T60 45 – +12V

T94 2 – GND

T94 60 – CAN High

T94 82 – CAN Low

T60 30 – GPT1

T94 63 – GPT2

MB MED17.7.1 TC1797, MB MED17.7.3 TC1797

T58 5, 15 – +12V

T58 2 – GND

T58 41 – CAN High

T58 54 – CAN Low

T96 83 – GPT1

T96 58 – GPT2

MB EDC17C66 TC1793F

T58 3, 15 – +12V

T58 2 – GND

T58 41 – CAN High

T58 54 – CAN Low

T96 35 – GPT1

T96 39 – GPT2

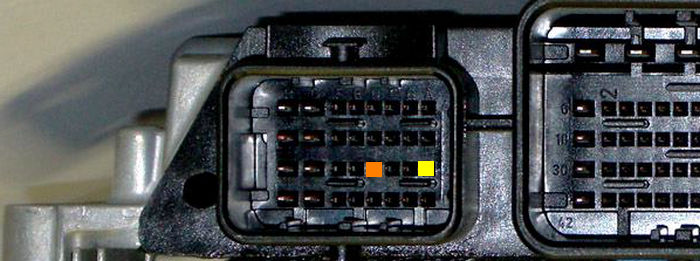

Mini MED17.2 TC1796

малый разъём

A2 - GPT1

D2 - GPT2

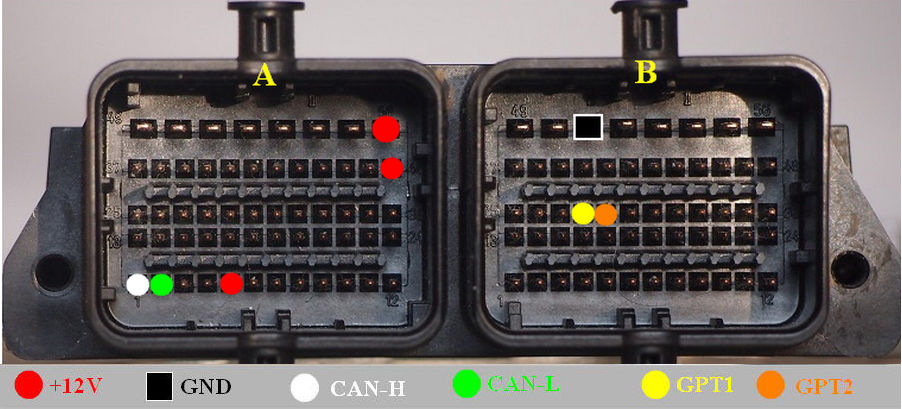

Suzuki ME178XX TC1762

A 5, 48, 56 – +12V

B 51 – GND

A 1 – CAN High

A 2 – CAN Low

B 28 – GPT1

B 29 – GPT2

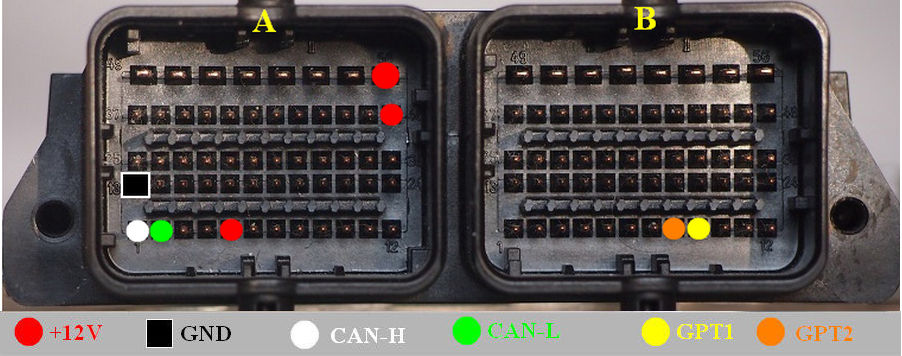

Suzuki ME 17.9.51

A 5, 48, 56 – +12V

A 13 – GND

A 1 – CAN High

A 2 – CAN Low

B 8 – GPT1

B 9 – GPT2

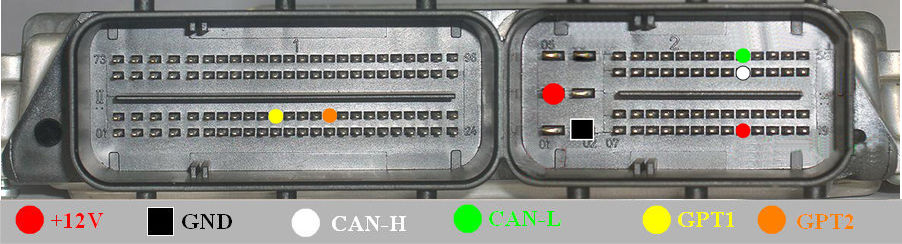

VAG EDC17CP20 TC1796, EDC17CP14 TC1796, EDC17CP14 TC1796+EXT

T94 6, 87 – +12V

T94 2 – GND

T94 68 – CAN High

T94 67 – CAN Low

T60 52 – GPT1

T60 44 – GPT2

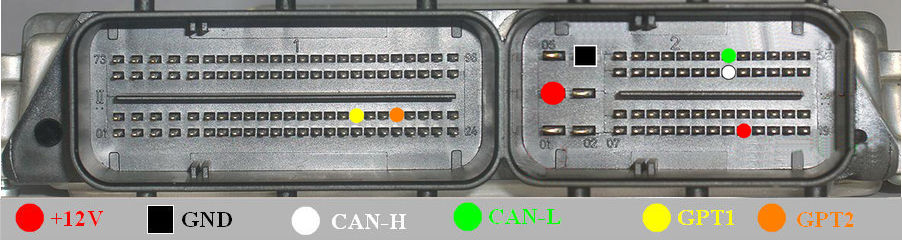

VAG  MED17.5 TC1766, VAG MED17.5.2 TC1767

T94 5, 87, 92 – +12V

T94 1 – GND

T94 68 – CAN High

T94 67 – CAN Low

T60 53 – GPT1

T60 36 – GPT2

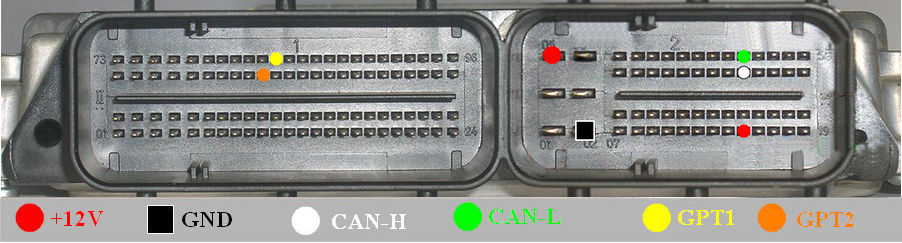

VAG ME17.5.26 TC1724

T94 3, 87 – +12V

T94 2 – GND

T94 68 – CAN High

T94 67 – CAN Low

T60 7 – GPT1

T60 5 – GPT2

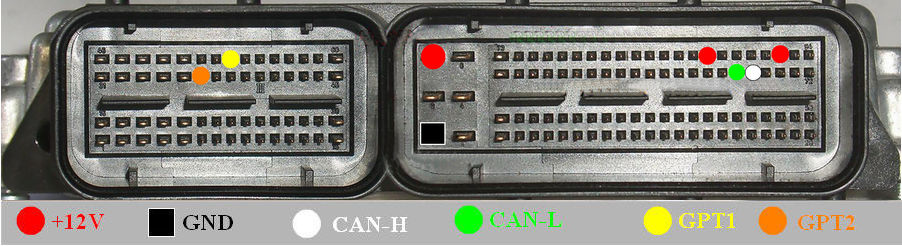

VOLVO EDC17CP22 TC1796+EXT

T58 1, 15, 16 – +12V

T58 2 – GND

T58 54 – CAN High

T58 41 – CAN Low

T96 7 – GPT1

T96 35 – GPT2

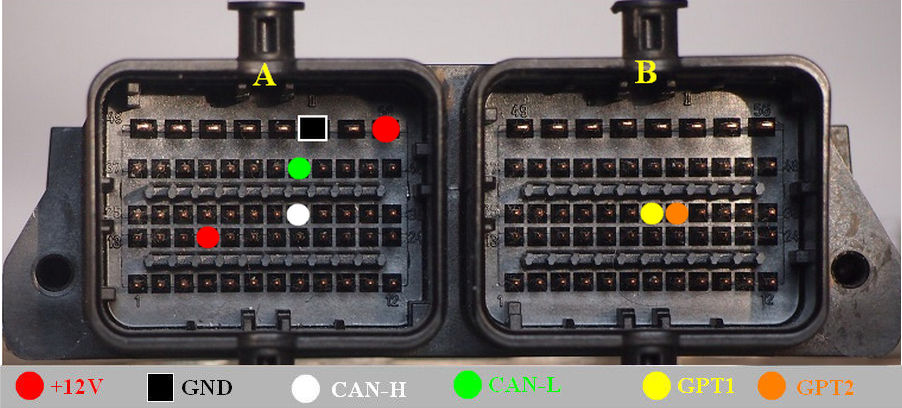

VAZ ME17.9.7 TC1762, VAZ ME17.9.71 TC1724, UAZ ME17.9.71 TC1724

A 16, 56 – +12V

A 54 – GND

A 32 – CAN High

A 44 – CAN Low

B 31 – GPT1

B 32 – GPT2

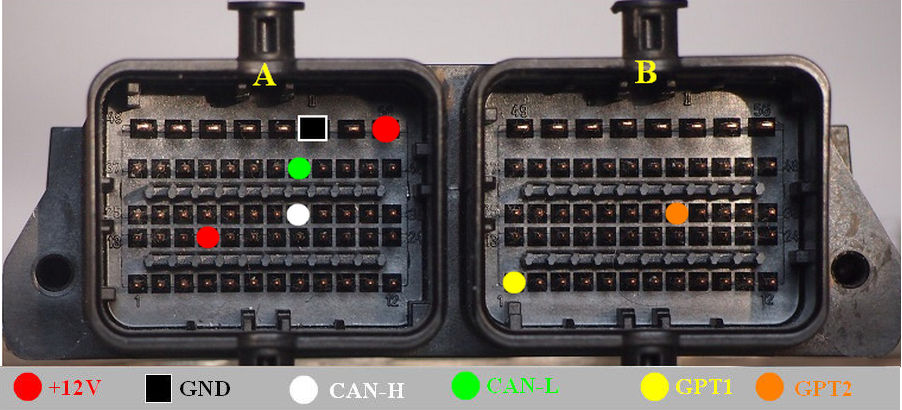

UAZ ME17.9.7 TC1762

A 16, 56 – +12V

A 54 – GND

A 32 – CAN High

A 44 – CAN Low

B 1 – GPT1

B 32 – GPT2
